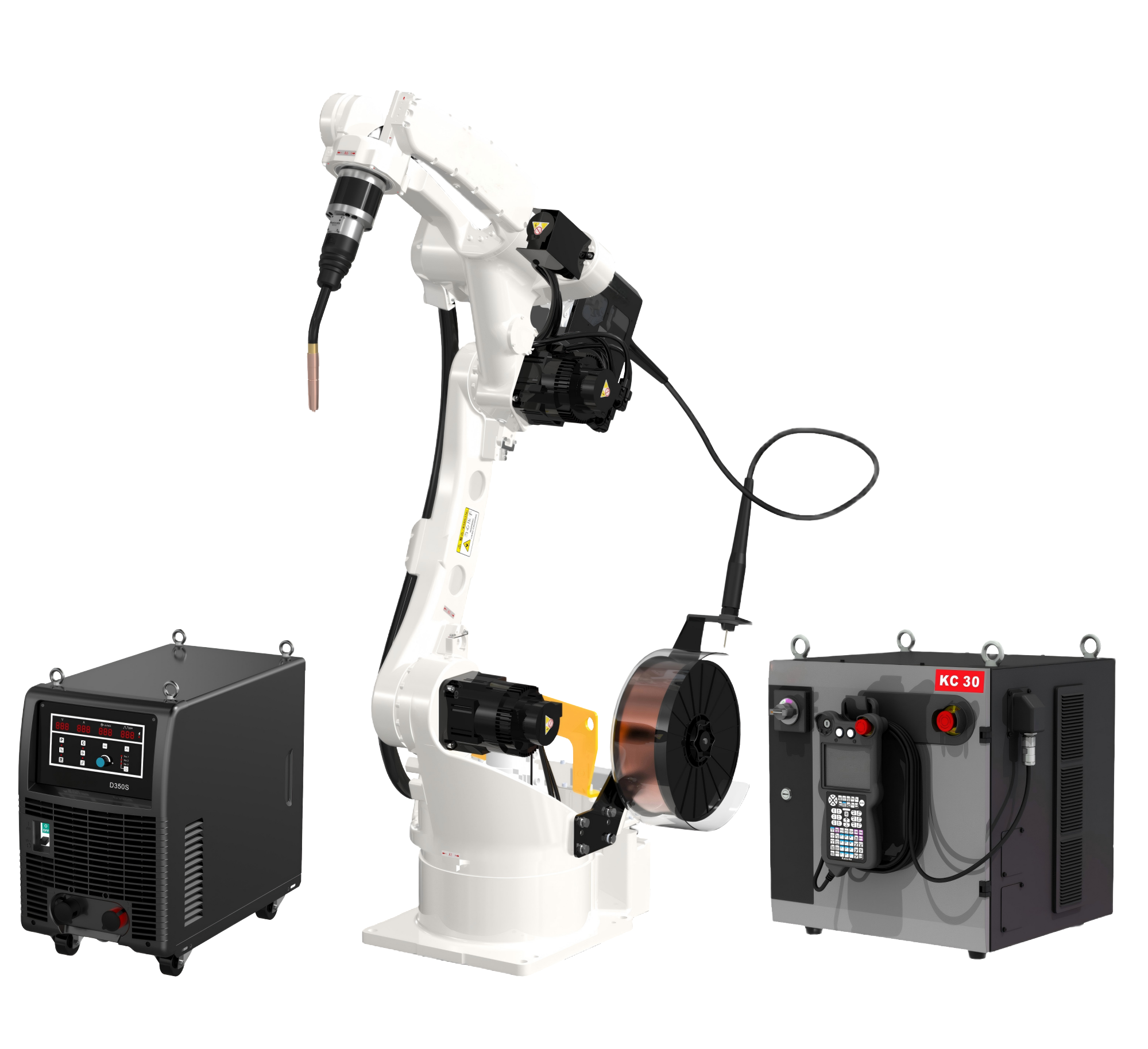

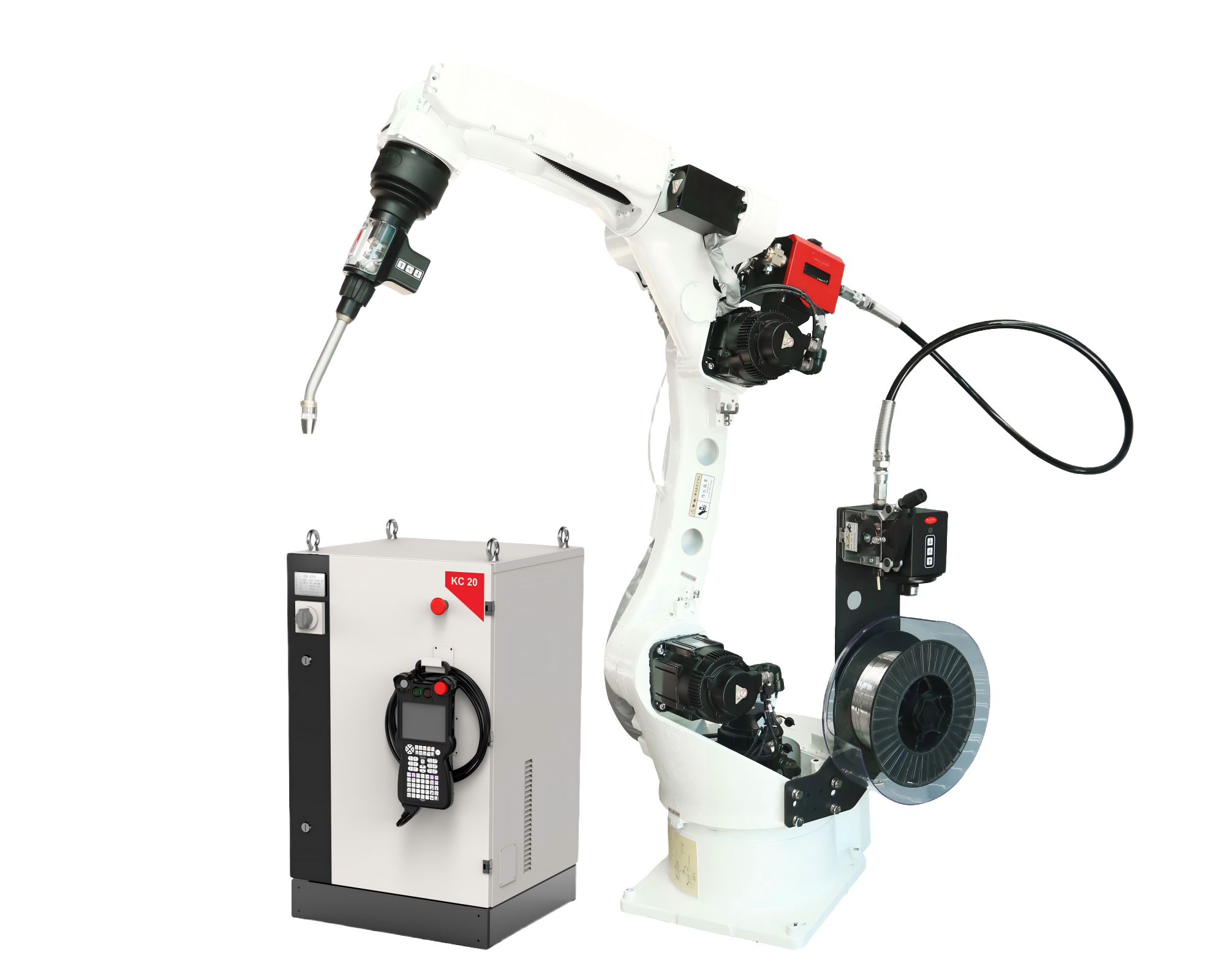

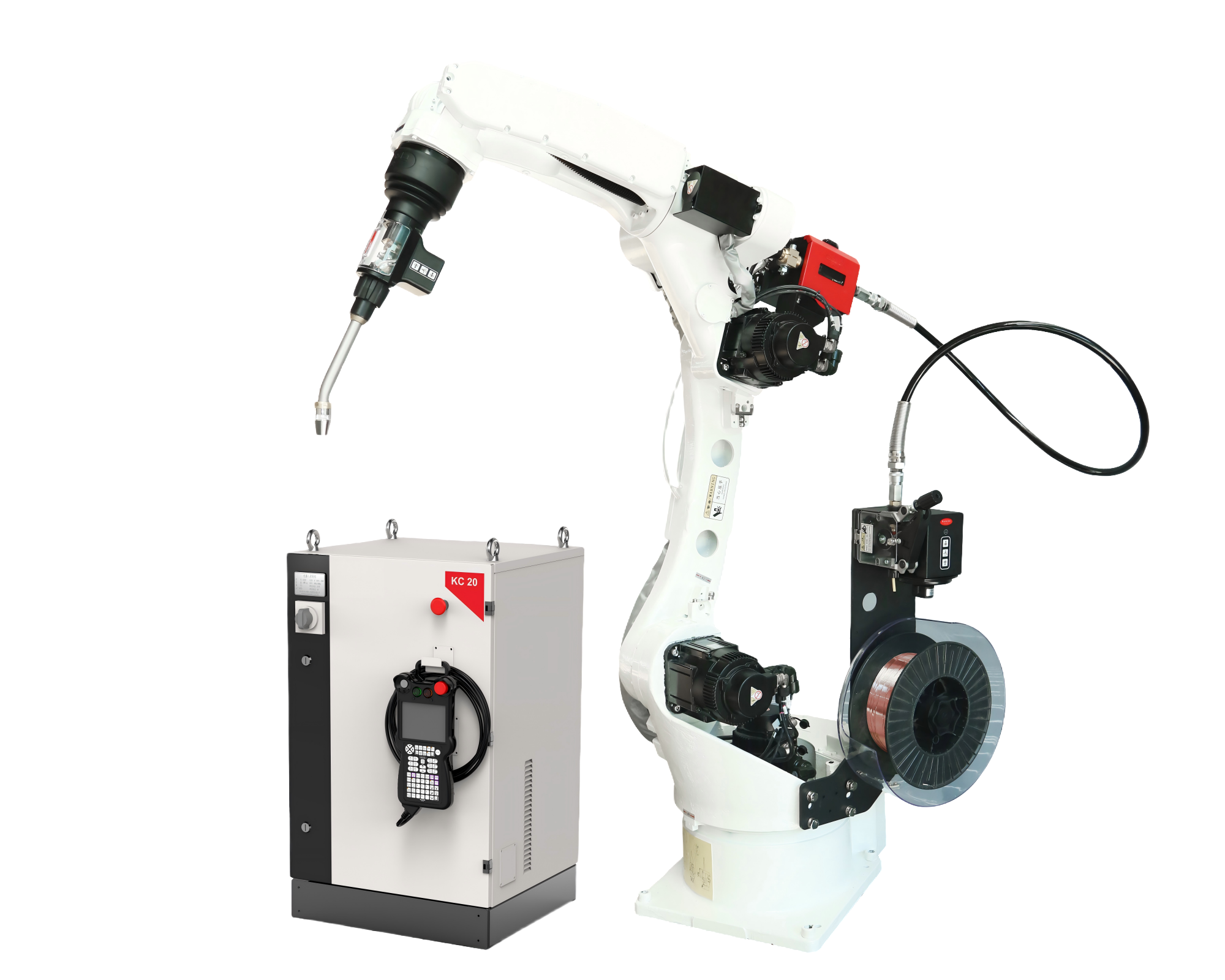

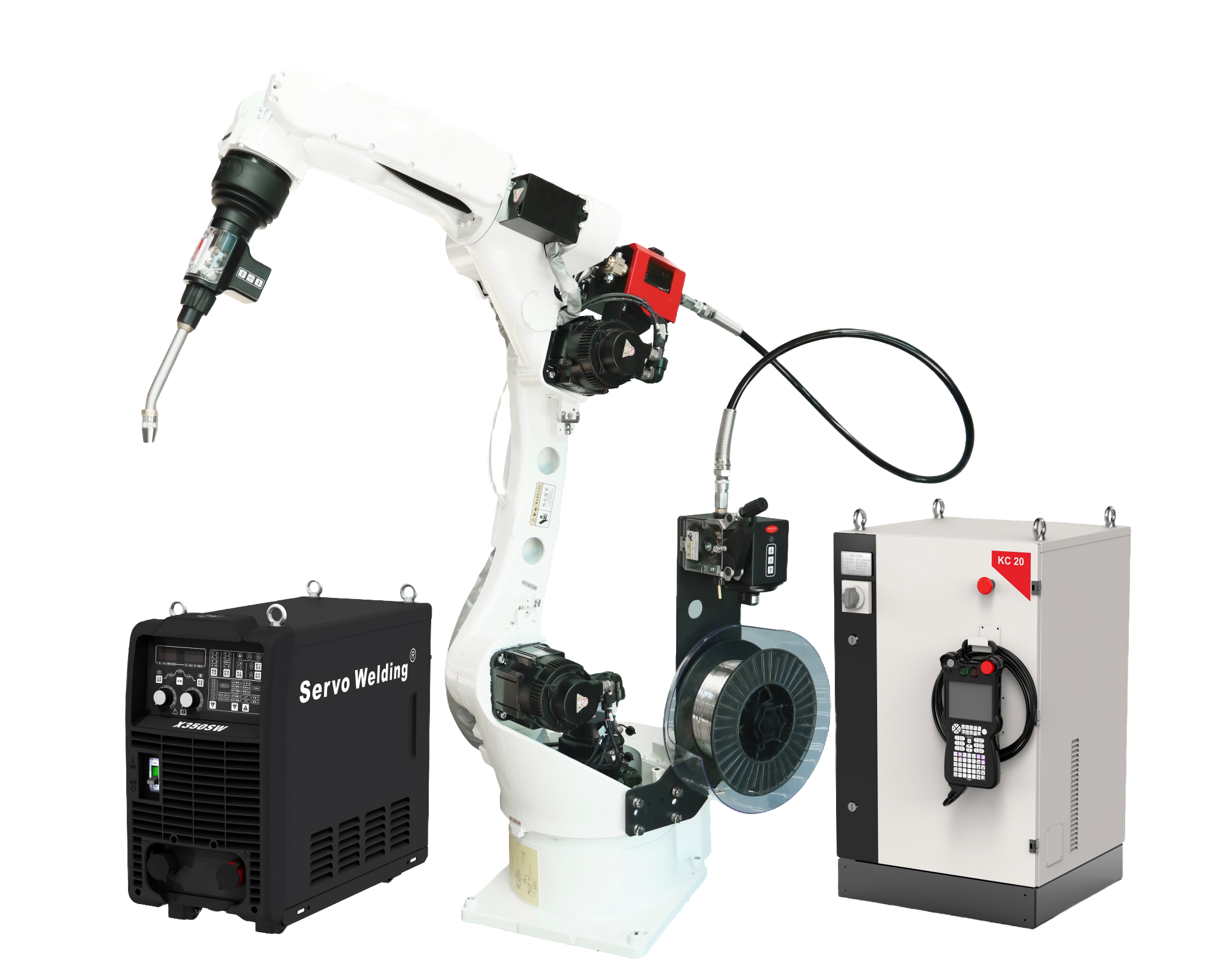

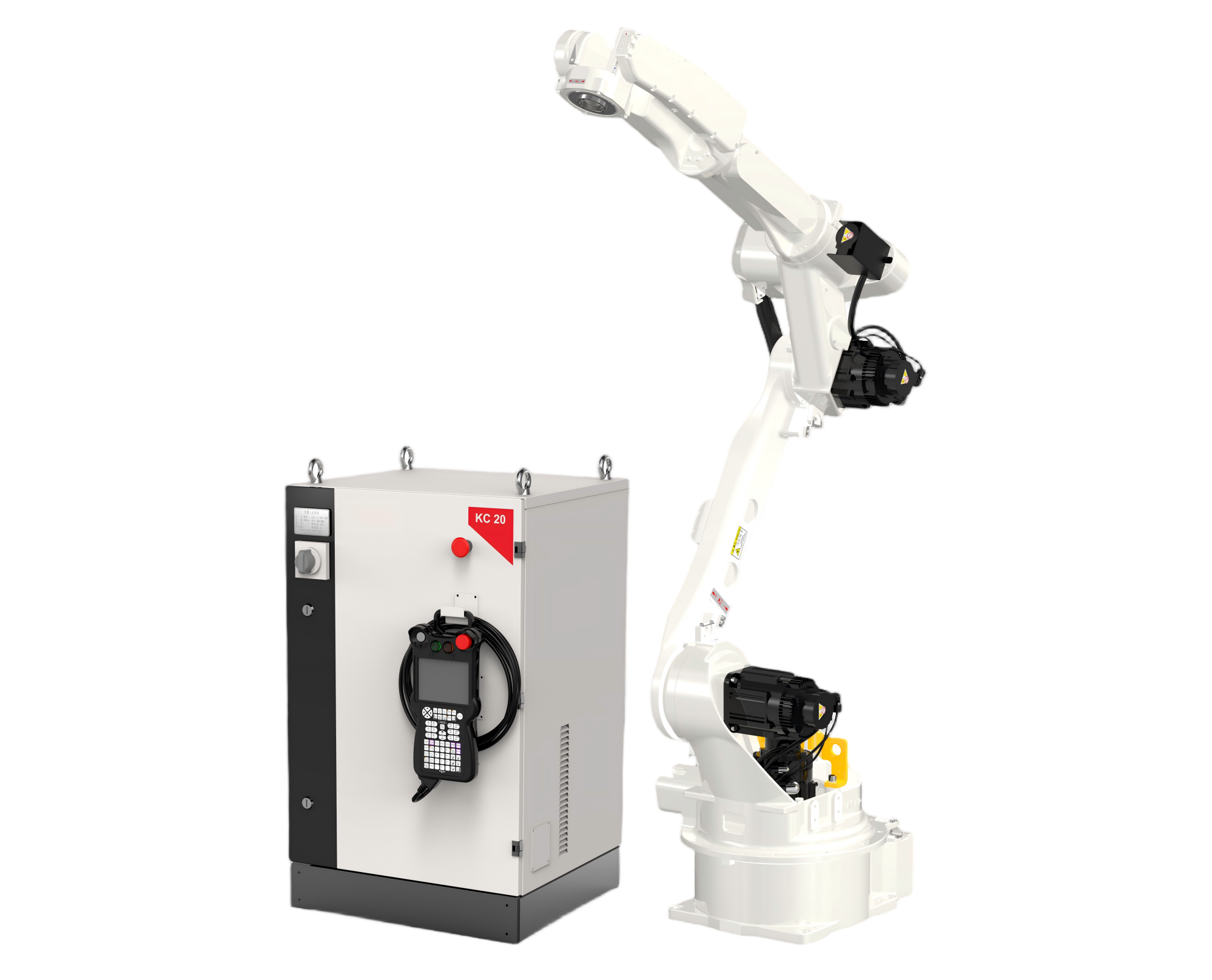

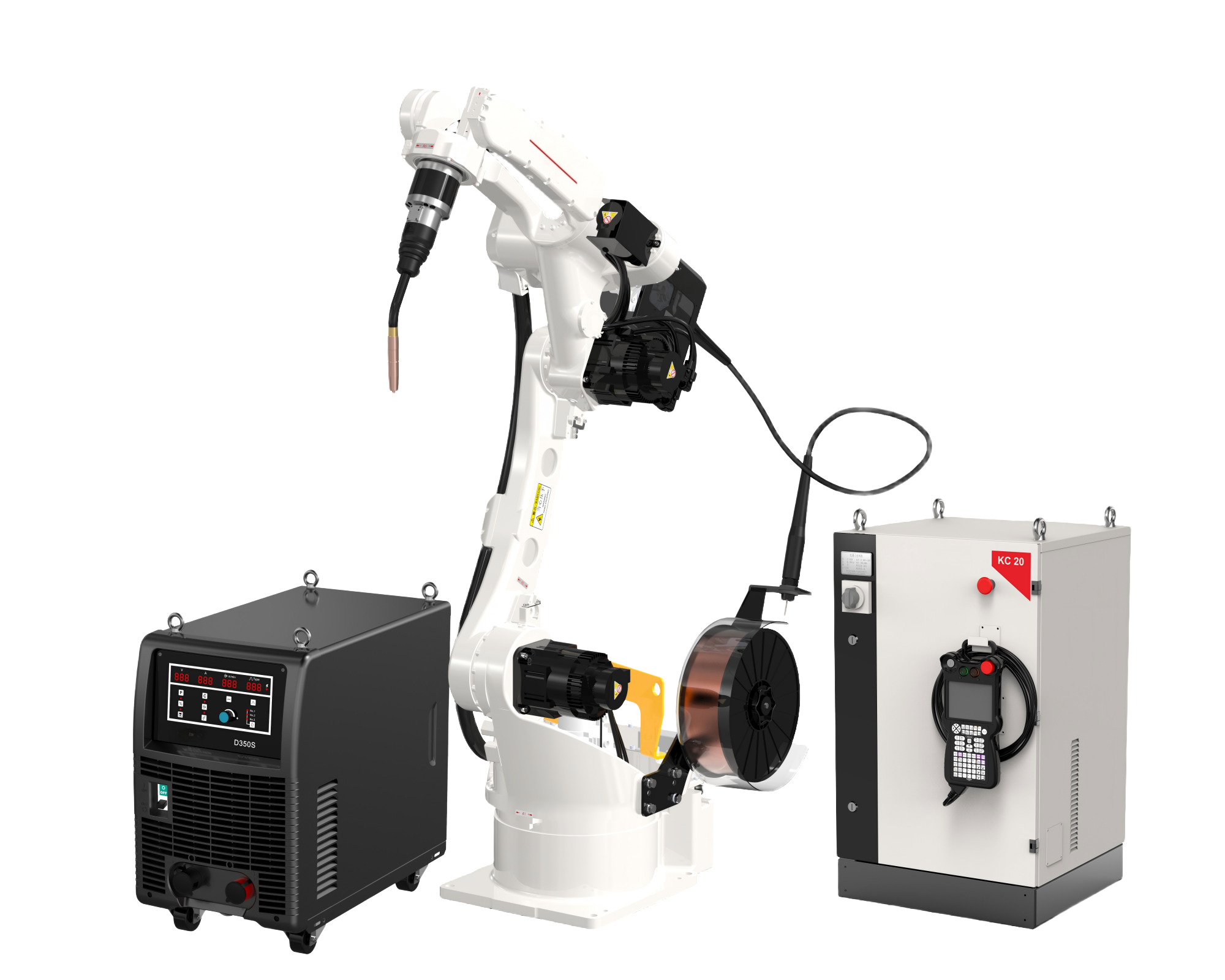

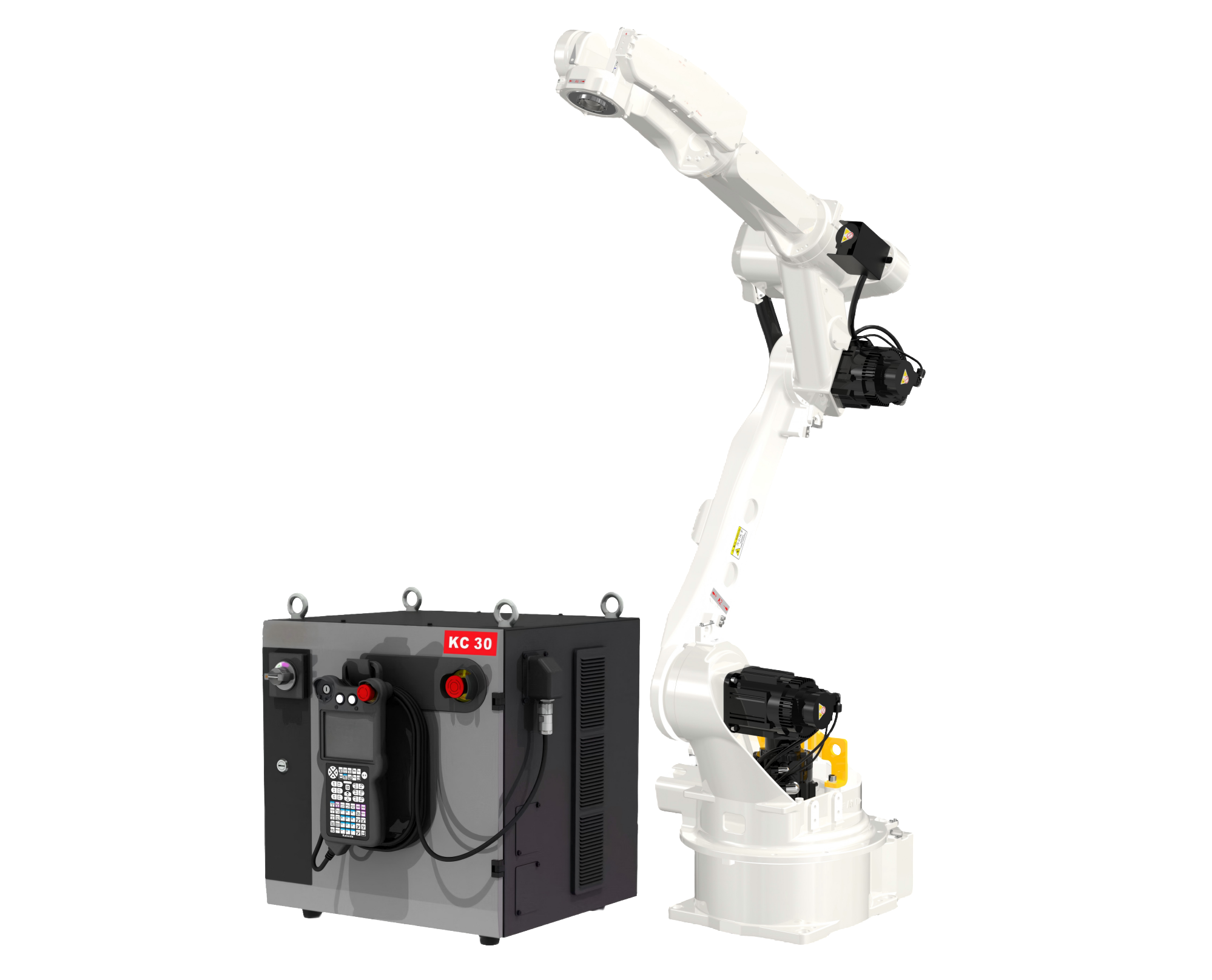

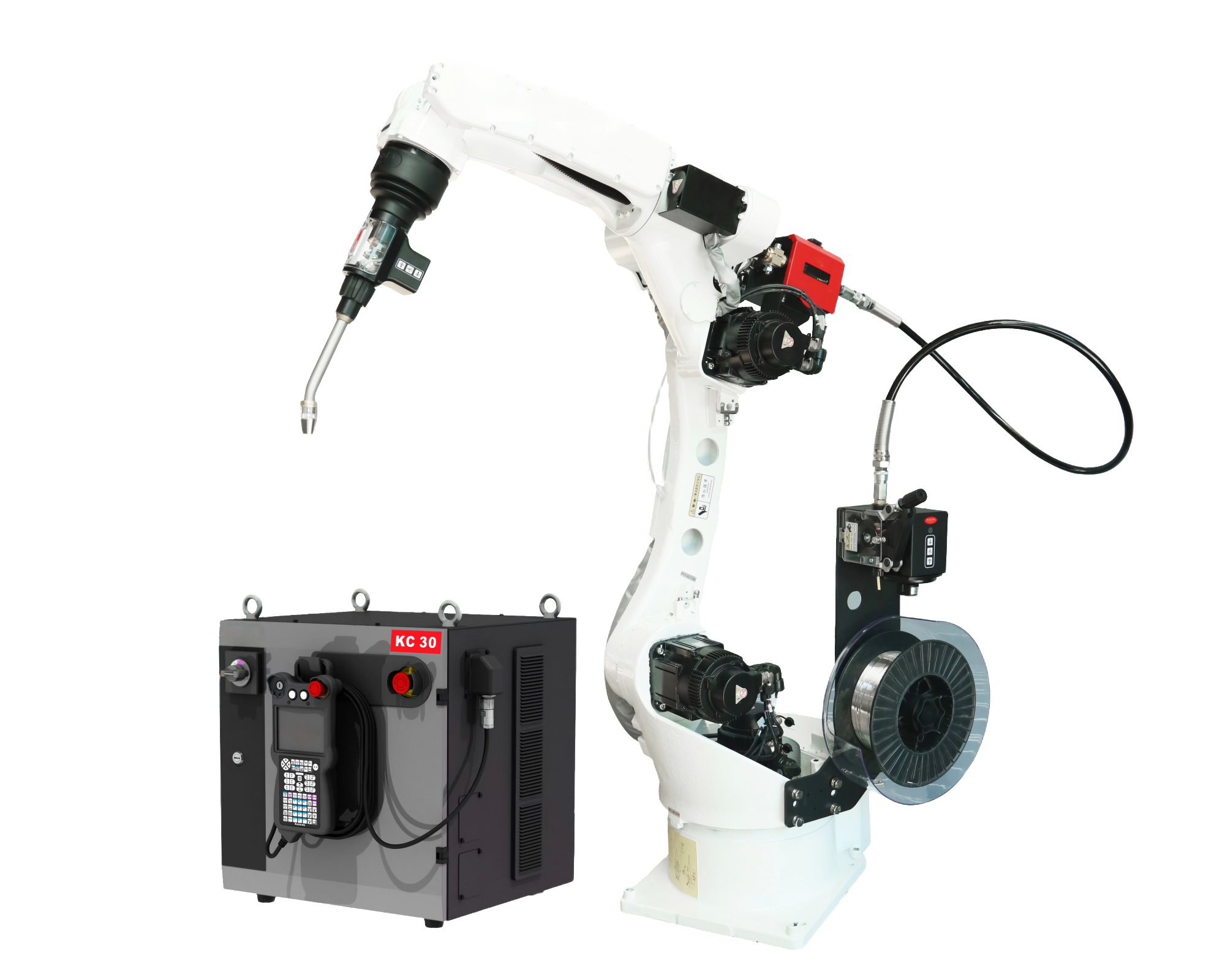

Professional, High-efficiency Industrial 6-axis Welding Robot with A 2-meter Arm Reach

Product Positioning: A welding robot with a long reach, designed for the automated welding of medium-to-large workpieces.

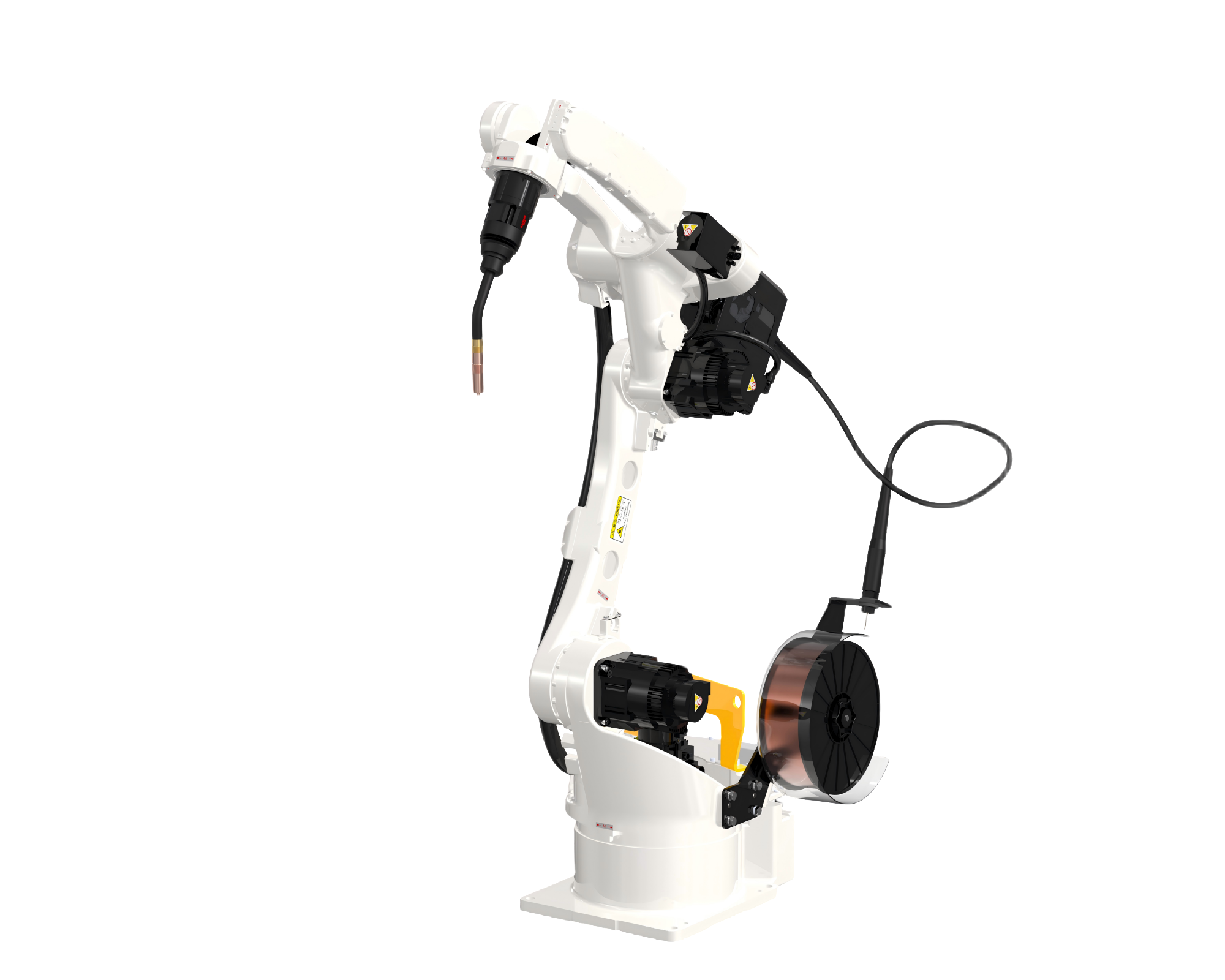

Hollow Arm Design: The welding torch cable is routed internally, significantly reducing external cable interference and allowing for greater flexibility in path teaching—making it particularly suitable for programming and debugging complex weld seam trajectories.

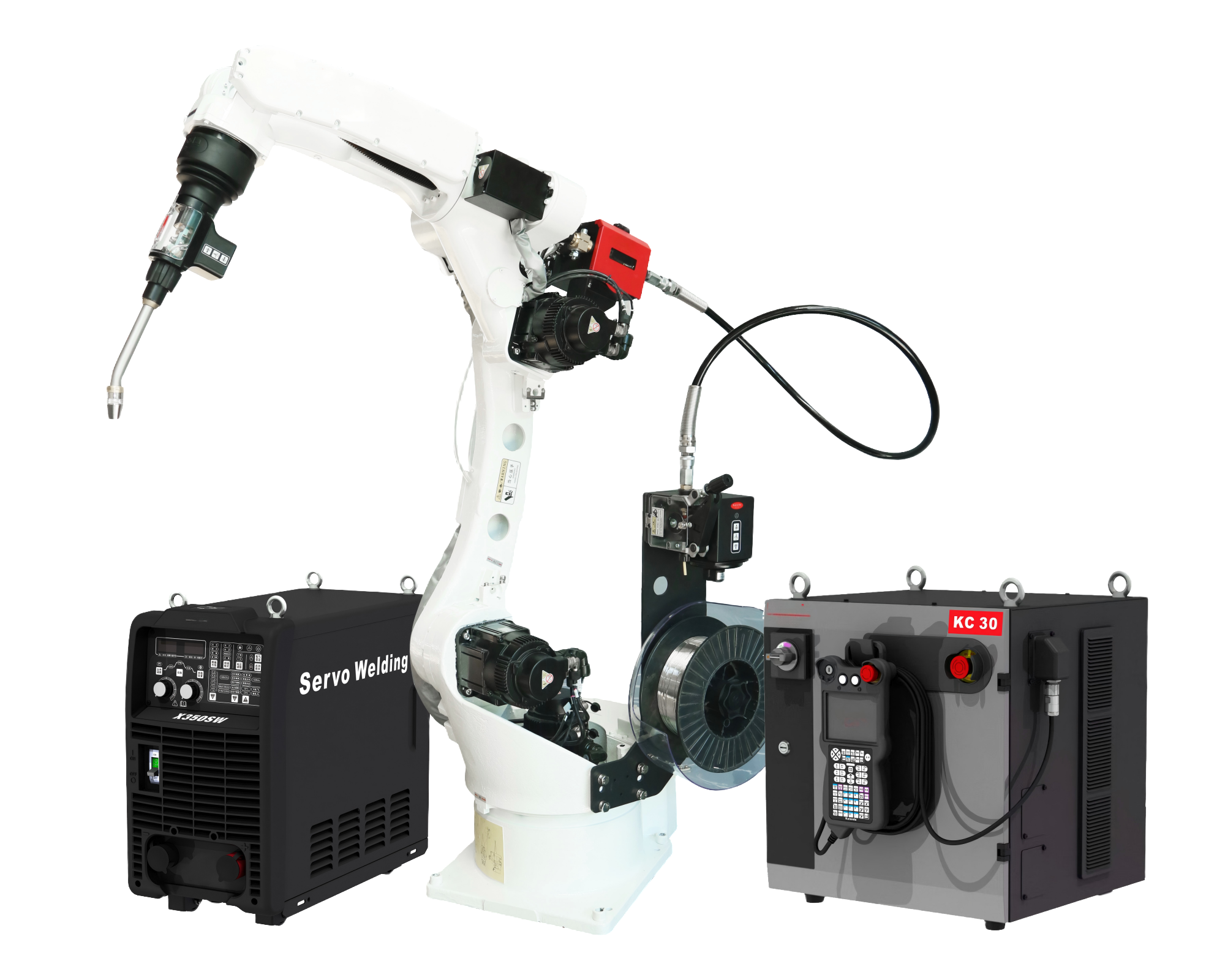

Ultra-Low Spatter Welding System: Equipped with a proprietary ultra-low spatter welding power source, it reduces spatter by over 90%, ensures excellent weld bead aesthetics, and significantly minimizes the need for post-weld grinding.

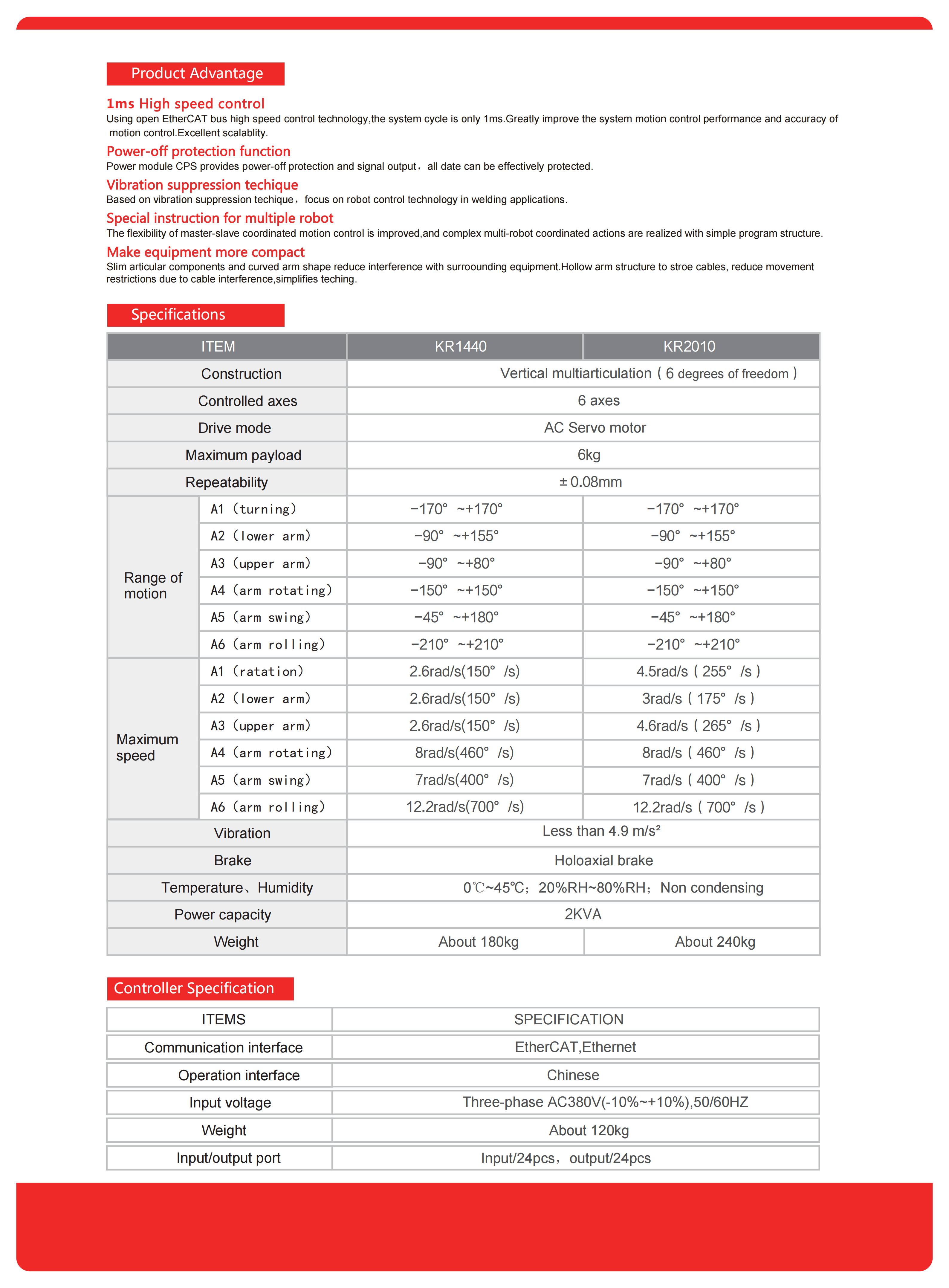

1ms High-Speed ​​Control Cycle: Utilizing EtherCAT-based high-speed control technology, the system achieves a cycle time of just 1ms, ensuring rapid motion control response and smooth trajectory interpolation.

Vibration Suppression Technology: Built-in vibration suppression algorithms address start-stop oscillation issues, ensuring welding stability during high-speed movement.

Maximum Welding Speed: Up to 2 m/min; typical welding speed in dual-robot coordinated operation is 60 cm/min.

Typical Applications: Arc welding of medium-to-large workpieces, including dust removal and environmental protection equipment, construction machinery structural components, shipbuilding plate components (capable of welding 30mm-thick high-strength steel), metal furniture, and automotive parts.
