Industrial Welding Robot Torch Cleaning Station

Pneumatic Torch Cleaning Station for Industrial Robots

In a robotic arc-welding cell, weld quality drifts long before the robot does. Spatter cakes onto the nozzle bore, the contact tip loses conductivity, and the wire ends up at a slightly different stick-out after every cut — so each arc starts a little differently from the last. The pneumatic cleaning station sits inside the cell and resets those variables on a fixed cycle. It reams the nozzle clean, applies a measured film of anti-spatter agent, and trims the wire to a repeatable length. One dock of the torch, half a second of cutting, and the gun goes back to the seam in the condition it started in.

The unit is driven entirely by compressed air. Only the control side touches electricity, which is exactly how you want it in a cell full of spatter, smoke and stray arcs.

What Happens in One Cleaning Cycle

The robot parks the torch over the cleaning head and the clamp cylinder closes on the nozzle, holding it concentric with the reamer. The air motor — around 650 rpm with up to 8 Nm of torque — drives the reamer into the nozzle and clears spatter from the bore, the gas diffuser and the area around the contact tip. Where the program calls for it, the spray head then lays a thin film of anti-spatter fluid from the 250 ml reservoir onto the inside of the nozzle.

Last step is the wire cut. The cutter handles solid welding wire up to 1.6 mm and flux-cored wire up to 3.2 mm, and the cut itself takes about 0.5 s. Stick-out is therefore identical at every arc start, which is what keeps TCP-to-wire-tip geometry honest over a full shift. When the cycle finishes, the clamp cylinder returns a 24 V DC confirmation signal to the PLC and the robot resumes welding. In practice the whole dock-and-clean move is scheduled during part load or unload, so in a well-laid-out cell it costs no cycle time at all.

Why Pneumatic, and Why It Matters Here

Every working motion on this station — clamp, reamer drive, spray, cutter — runs on 6–8 bar of clean, oil-lubricated compressed air, at a consumption of roughly 6.3 L/s while running. There is no electric drive in the spatter zone to foul or burn out, and nothing that can spark beside an arc process. Air consumption of this order is a rounding error next to the cost of one scrapped part or one unplanned nozzle change.

The control interface is deliberately thin: 24 V DC, maximum 0.15 A. One digital output from the cell PLC starts the cycle, one input from the clamp cylinder confirms it. Any standard robot or PLC I/O card covers it without relays or interface boxes on the drive side.

Two Mounting Options, Same Cleaning Head

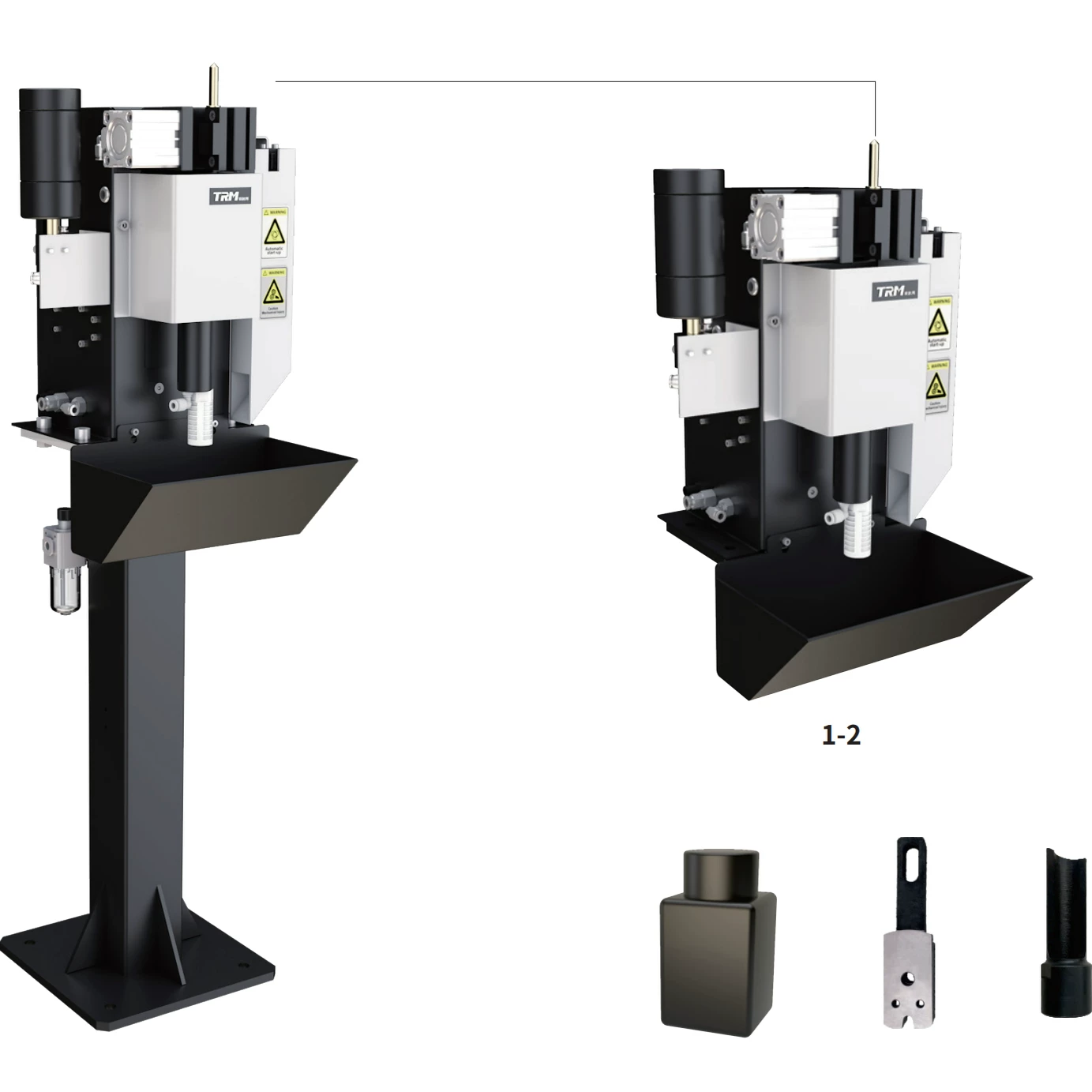

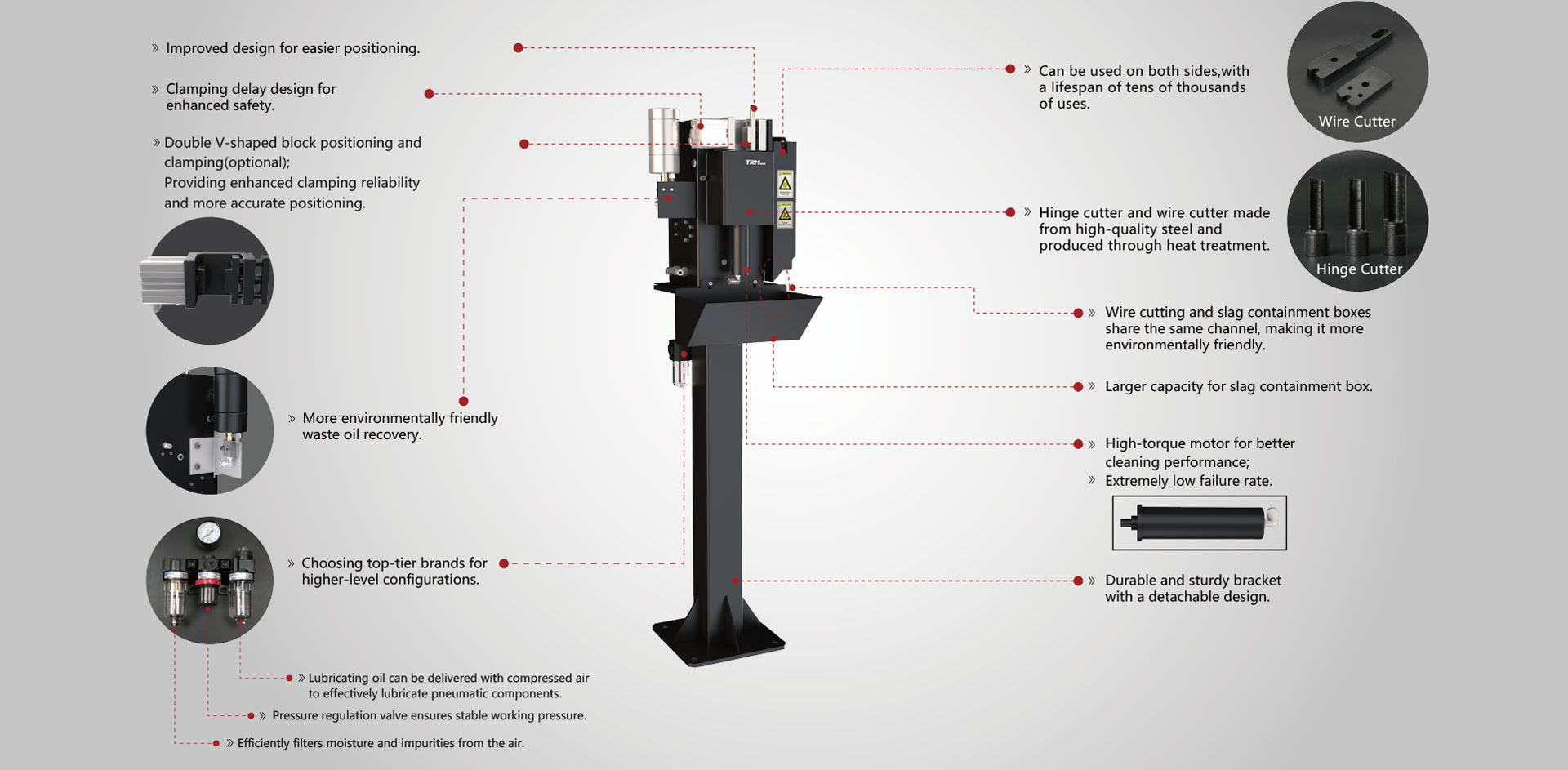

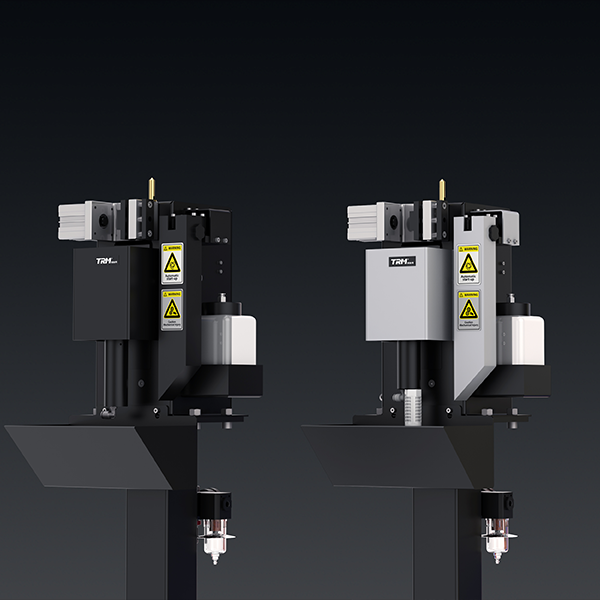

The station is supplied either on a floor stand with a bolt-down base plate, or as a bracket-mount unit for fixing to a fixture, fence post or machine frame — the two configurations share the identical cleaning head, clamp and cutter assembly. Both carry the angled drip tray that catches anti-spatter runoff and cut wire ends instead of letting them reach the floor. On the stand version, a filter-regulator with bowl is fitted at the point of use, so the air the motor receives is conditioned at the station rather than depending on shop-air quality somewhere upstream.

Housing carries clear warning labels, including an automatic start-up notice: the clamp and cutter move on air signals, so maintenance staff isolate the air supply before servicing, as marked.
