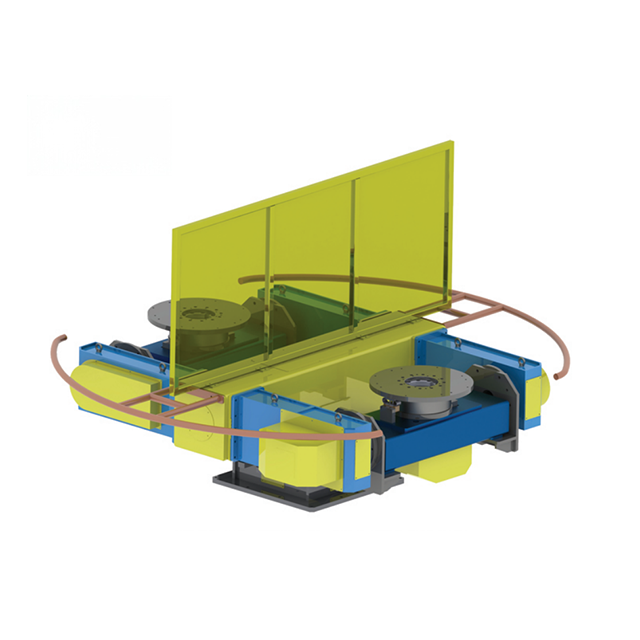

The 5-axis 2-station P-type Welding Positioner is engineered specifically for manufacturing industries dealing with complex three-dimensional workpiece structures, varied weld seam angles, and high-volume production demands. By integrating effectively with optional accessories such as industrial welding robot arms, dedicated welding machines, laser welding systems, and specialized welding torches, this equipment transforms traditional fabrication into a highly efficient automated process.
Advantages:
Excellent operating space and accessibility: Featuring an innovative P-type cantilever structure without the obstruction of a traditional tailstock, this positioner provides an extremely wide and unobstructed operating space. This design allows the robotic welding torch to reach complex joints and easily eliminate welding dead angles, ensuring consistent weld penetration and superior finish quality.
Doubled production capacity and extremely high return on investment: The dual-station configuration allows operators to load and unload workpieces at one station while the robot actively welds at the other. This continuous workflow drastically reduces idle time, effectively doubling production capacity and delivering an exceptional return on investment for automation upgrades.
Compact structure, saving workshop space: Designed with an optimized footprint, it is an excellent choice for manufacturing facilities with limited workshop space that are looking to transition to automated welding systems without requiring massive layout changes.
Excellent flexibility and compatibility: Perfectly aligned with modern manufacturing trends, this positioner supports the flexible production of "small batches and multiple varieties." It adapts quickly to different workpiece geometries, reducing changeover times and improving overall line adaptability.
Furthermore, Guansen Automation provides professional customization services. We will tailor the positioner's load capacity and physical dimensions according to your specific product requirements, enabling every workpiece to achieve the ideal welding speed, optimal positioning, and reliable welding effects.
This versatile 5-axis positioning equipment is highly recommended for industrial applications requiring precise manipulation of heavy or irregularly shaped components to maintain strict welding standards.
Automotive/Rail Transportation: Ideal for manufacturing high-speed rail bogie components, subway car body parts, complex automotive chassis supports, and irregularly shaped tubular components where structural integrity is critical.
Construction Machinery: Perfectly suited for handling heavy-duty parts such as excavator booms, boom attachments, pin bearings, and small slewing bearings, ensuring deep and consistent weld seams.
General Machinery/Precision Manufacturing: Provides the necessary stability for welding large gearbox housings, pump bodies, industrial valves, and various precision irregularly shaped structural components.
Steel Structure/Aerospace: Highly capable of positioning irregularly shaped steel structure nodes, specialized aerospace components, and small aircraft structural components that demand flawless precision.
Wind Power/Energy Equipment: Efficiently handles the fabrication of wind turbine flanges, main shaft supports, and small tower accessories required in renewable energy sectors.
To ensure a smooth integration into your production line and maximize your equipment lifespan, Guansen Automation offers a comprehensive support system designed to empower your operators and reduce operational risks.
Comprehensive and professional instruction manuals covering setup, daily operation, and routine maintenance.
Dedicated engineer assignment for personalized, one-on-one technical guidance.
Responsive online communication and remote training support to quickly resolve any operational queries.
On-site commissioning and hands-on training support to ensure your team is fully capable of managing the automated system.
Free training and operational guidance available directly at Guansen Automation's manufacturing facility.
1. What data is needed for a customized welding solution or positioner?
To design the most effective solution, we require details including the workpiece weight, physical dimensions, specific welding material, required weld thickness, and the desired final welding effect.
2. Can it be integrated with a welding robot?
Yes, integration is fully supported. However, to ensure optimal synchronization and precision, a high-quality brand and reliable performance are required for the robotic arm.
3. What are the installation, commissioning, and training services?
All equipment undergoes rigorous quality inspection and is shipped only after successful factory commissioning. We provide free personnel training at our facility. Alternatively, you can choose to have our experienced engineers provide on-site installation, commissioning, and comprehensive training at your location until the equipment is operating normally and efficiently.
4. What is the warranty?
We provide a standard one-year warranty for the equipment. Wear parts are supplied for free during this warranty period (please note that shipping costs for these parts are the buyer's responsibility).
5. What is the delivery time for the entire set of equipment?
For customized models, the typical delivery time ranges from 20 to 40 days, depending on the specific configuration and customization requirements of your project.
