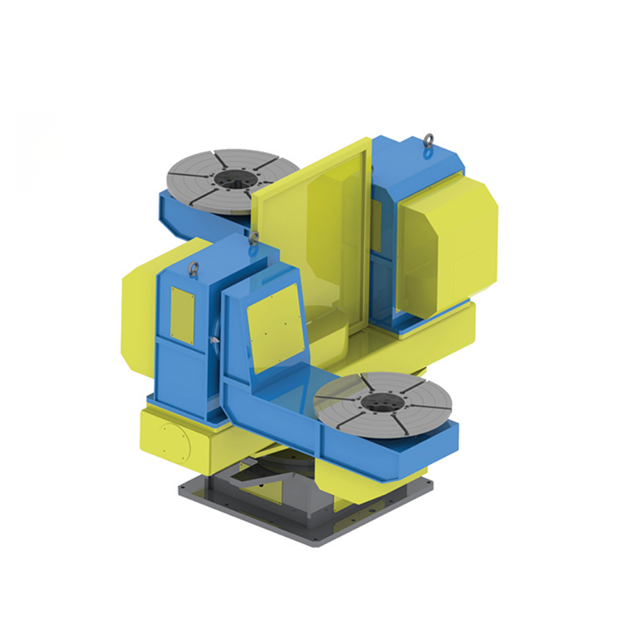

The 5 Axis 2-station L-type Welding Positioner is an advanced automation solution engineered specifically for manufacturing industries dealing with complex three-dimensional workpiece structures, variable weld seam angles, and demanding large-volume production requirements. By integrating this equipment into your production line, you can significantly enhance welding precision, reduce manual intervention, and improve overall operational efficiency.
Optional accessories to complete your automated cell include: Industrial welding robot arm, dedicated welding machine, laser welding machine, welding torch, and other related integration components.
Advantages:
Eliminates welding dead angles: The highly flexible 5-axis posture perfectly solves the persistent welding challenges associated with irregularly shaped and complex curved parts. It ensures the welding torch can reach every necessary angle, guaranteeing consistent weld penetration and superior structural integrity.
Doubles production capacity: Featuring an innovative 2-station design, this positioner allows operators to load and unload workpieces at one station while the robot actively welds at the other. This continuous workflow drastically reduces idle time, offering an extremely high return on investment (ROI) for high-volume manufacturing.
Excellent load-bearing capacity and stability: The robust L-shaped structure is constructed using high-strength steel plate welding and features a heavy-duty reduction mechanism. Combined with precise servo motor drives, it maintains stable, smooth, and highly controllable movement, effectively eliminating the risk of heavy or unbalanced parts tipping over during the welding process.
Excellent flexibility and compatibility: A single machine can accommodate the production of multiple specifications and diverse product varieties. This adaptability is perfectly suited to the current manufacturing trend of flexible production, addressing the growing demand for "small batches, multiple varieties" without requiring frequent equipment changeovers.
Furthermore, Guansen Automation will professionally customize the positioner load capacity and physical dimensions according to your specific product characteristics and production needs, enabling the workpiece to achieve the ideal welding speed, optimal positioning, and flawless welding effect.
This multi-axis welding positioner is widely applied across various heavy and precision industries, providing reliable support for critical structural components:
Automotive/Rail Transportation: Ideal for handling high-speed rail bogie components, subway car body parts, complex automotive chassis supports, and irregularly shaped tubular components that require strict safety and precision standards.
Construction Machinery: Highly effective for the automated welding of heavy-duty excavator booms, boom attachments, pin bearings, and small slewing bearings, ensuring deep penetration and long-term structural durability.
General Machinery/Precision Manufacturing: Suitable for manufacturing large gearbox housings, heavy pump bodies, industrial valves, and precision irregularly shaped structural components where dimensional accuracy is paramount.
Steel Structure/Aerospace: Frequently utilized for fabricating irregularly shaped steel structure nodes, specialized aerospace components, and small aircraft structural components that demand flawless weld seams.
Wind Power/Energy Equipment: Essential for the production of wind turbine flanges, main shaft supports, and small tower accessories, supporting the reliable operation of renewable energy infrastructure.
To ensure smooth integration and maximize equipment uptime, Guansen Automation offers a comprehensive support and training system designed to empower your operators:
Comprehensive and professional instruction manuals for quick reference and daily maintenance.
Dedicated engineer assigned for one-on-one guidance to address your specific operational queries.
Responsive online communication and remote training support for fast troubleshooting.
Professional on-site commissioning and hands-on training support at your facility.
Free comprehensive training and operational guidance available directly at Guansen Automation's factory.
1. What data is needed for a customized welding solution or positioner?
To design the most effective solution, we require details including workpiece weight, overall dimensions, specific welding material, required weld thickness, and the desired final welding effect.
2. Can it be integrated with a welding robot?
Yes, it can be smoothly integrated. Please provide your specific requirements regarding the robot brand and the performance expectations for the automated cell.
3. What kind of installation, commissioning, and training services are provided?
All equipment undergoes rigorous quality inspection and is shipped only after factory commissioning is fully complete. We provide free personnel training services. Alternatively, you can choose to have our experienced engineers provide on-site installation, commissioning, and training at your facility until the equipment is operating normally and your staff is proficient.
4. What is the warranty?
We provide a comprehensive one-year warranty for the equipment. Wear parts are provided for free during this warranty period (shipping costs are borne by the customer).
5. What is the delivery time for the complete set of equipment?
For customized models, the delivery time typically ranges from 15 to 45 days, depending on the specific configuration and customization requirements of your order.
